NEMO is a Stellar Dynamics Toolbox
Version : 3.0.12
Author(s) : Joshua Barnes, Piet Hut, and Peter Teuben
(nemo@astro.umd.edu)
License : GPL
Website :
http://bima.astro.umd.edu/nemo/
Disk space required for installation is 67.68 Mb
After the package is installed it can be accessed using the command
/opt/lfa/startnemo
A shortcut will be installed in the KDE/GNOME desktop menu system,
as an entry in the Astronomy submenu
Summary
These are the tasks currently available under to run under NEMO. They
are a collection of program to do N-body calculations and some simple
2/3-D image processing, connected with the
N-body calculations. If program names are preceded by a dash (-)
they do not have NEMO's user interface and are sometimes not even found
in NEMO's bin area on disk (usually referred to
as $NEMOBIN). Program names ending on a star (*) are available
under this and sometimes more wildcard names (e.g. snapplot and
snapplot_ps) Program names ending in a questionmark
(?) are not available yet, but we're thinking of making them. Check
the futureplan software(8NEMO) document to see if anyone is working on
them yet.
1. GENERAL INFORMATION (only doc/man)
programs
list of programs (this file)[8]
intro
list of programs (alphabetical)
software
status software developement[8]
files
summary of all special files
example
example skeleton file for manual page writers[8]
usage205
a very short an simple instruction list for CYBER 205 users [8]
usageeta10
some comments on ETA-10 usage [8]
cookbook
a quick list of what to do to run (e.g.) treecode on the 205 [8]
tricks
useful tricks and bug detours [8]
orbit
overview what orbit utilities are planned [0]
2. UTILITY TASKS
nemoshow
check environment, show NEMO system variables/keywords
-cc
special program or shell script needed in some UNIX flavors
-make
special program or shell script needed in some UNIX flavors
-keyval
display value in a `keyword=value' string
nemoinp
test parsing of numbers
units
units conversion utility
3. DATA CONVERSION
atos,atos_sph
convert an ascii snapshot file into snapshot(5) format
stoa,stoa_sph
convert a snapshot(5) file into an ascii file
tabtos
convert ascii table into snapshot format
snapprint
create table of snapshot variables
snapfits
Convert snapshot into FITS random group format
snap3dv
convert snapshot to 3dv format for 3D display
stoo
convert a snapshot(5) file into an orbit(5) file
otos
convert an orbit(5) file into an snapshot(5) file
snapccd
grid a snapshot(5) file into an image(5) file
snapgrid
grid a snapshot(5) file into an image(5) file
ccdfits
convert an image(5) into a fits(5) file
tsf
type a structured file
rsf
read a structured file
csf
copy a structured file and swap bytes if needed
hisf
display and manipulate data history of a structured file
bodytrans
test (and/or create new) body to scalar mapping routines
bswap
swap bytes
snapxyz
convert snapshot to xyzc data
fitsgrid
convert fits binary table to an image by gridding
units
units conversion utility
4. N-BODY REALIZATORS
anisot
create distribution function table for anistropic spherical models
mkommod
anisotropic velocity distribution (Merritt)
mkplummer
plummer model
mkdisk
uniform disk of test-particles in external potential
mkspiral
uniform disk of test-particles with logarithmic spiral
mkpolytrope
polytrope sphere
mkbaredisk
almost stable disk...
mkexpdisk
almost stable disk... (test version)
mkexphot
3D-exponential hot disk inside assumed halo
snapenter
interactive, quicky
mkconfig
...
mkhomsph
homogeneous sphere
mkhom
homogeneous sphere
mkisosph
isothermal sphere
mkmestel
Mestel disk
mktestdisk
toy program
5. N-BODY INTEGRATORS
hackcode1*
C-version of TREECODE: with optional time slicing
hackcode3*
C-version, with optional fixed particles/background potential
-treecode
(Hernquist') fortran version of HACKCODE
quadcode
Simon White's quad-code
potcode
fixed potential N-body integrator - optional dissipation
nbody0
aarseth integrator, variable timestep (toy version)
nbody1
aarseth integrator, variable timestep (full version)
nbody2
aarseth integrator, with Ahmad-Cohen neighbor scheme
newton0*
multi-purpose N-body integrator
gravsim0
frontend for the GRAVSIM family of integrators
6. PLOTTING, PRINTING and HARD COPIES
--sm
interactive graphics utility (sun/x windows)
--mongo
interactive graphics utility (sun (color) windows)
--gnuplot
interactive function plotter
snapdiagplot*
diagnosis of an N-body run
snapplot*
display N-body snapshot file
trakplot*
display N-body snapshot file (cumulative)
snapplotedit
display and edit N-body snapshot file (interactive + mouse)
xyzview
Display 3-D position velocity data
tsf
type structured file
snaplist
make listing of N-body snapshot file
snapprint
make tabular listing of N-body snapshot file
radprof*
radial profile and plotting
snapslit*
Simulate taking a slit spectrum of an N-body snapshot
snapaxsym
Axisymetric image view of a snapshot
plarrow_ps
plot an arrow in postscript
pltext_ps
plot text in postscript
-movie,movie_sv
display screendumps in orderly fashion
mkcolor
create color table
7. 2D IMAGE UTILITIES
snapccd
construct CCD velocity-moment image from an N-body snapshot
snapgrid
general image constructor from snapshot
snapsmooth*
variable smoothing of an N-body snapshot to an image
ccdsmooth
smoothing of a 2D image map
ccdmath
image arithmetic, using function expressions
ccdfft
2D Fast Fourier Transform of a map
ccdfits
create fits file from an image
ccdplot
contour/gray-scale for an image
ccddisplay
display 2D image on Sun screen (non-yapp suntools)
ccddump
dump contents of an image
ccdstat
statistics on image
ccdprint
print out map values at gridpoints of an image
ccdvel
create a velocity field
ccdsub
subset/average of an image
snapaxsym
Axisymetric image view of a snapshot
-ds
image display program (suntools)
8. ORBIT UTILITIES
mkorbit quick making of an orbit for orbit(5NEMO)
stoo
conversion of snapshot(5NEMO) to orbit(5NEMO) format
otos
convert an orbit(5) file into an snapshot(5) file
orbint
integrate an orbit using potential(5NEMO) file
orblist
list an orbit orbplot* plot an orbit
orbdim
dimensionality of phase space for an orbit
potlist
show potential and forces of potential(5NEM0) file
pspeed
Tremaine Weinberg pattern speed of system perorb search for
periodic orbits
9. MANIPULATION
hackforce*
add hack-forces to a snapshot
snapscale
scale phase space coordinates of an N-body snapshot
snapshift
shift phase space coordinates of an N-body snapshot
snapcopy
copy particles of snapshot subject to conditions
snaprotate
rotate an N-body system
snaptrim
cut(extract) a snapshot file down in size
snapsphere
take a selective number of particles from a snapshot
snapcenter
center a snapshot
snaprect
diaganolize moment-of-inertia of snapshot
snapmask
mask out certain particles
snapdist
distance between two snapshots
snapmass
add masses to a snapshot
snapspin
add spin along Z-axis of a snapshot
snapvirial
scale snapshot while retaining virial ratio
snapcmp
compare two snapshots
snapcmphist
compare two snapshots and plot histogram
snapplotedit
interactive graphics editor for N-body snapshots
snapdens
local density estimator using nearest neighbor
hackdens
local density estimator using nearest neighbor and tree
10. COMBINATION
snapstack
add snapshots, optional offset them snapadd
11. ANALYSIS
snapstat
compute various statistics of a snapshot
snappeak
mode analysis on snapshot
snapkinem
lagrangian kinematic analysis
snapinert
--same-
snaprect
diaganolize moment-of-inertia of snapshot
snapdiagplot*
diagnosis of an N-body run
snaphist
histogram of projected radii and velocities
snapvirial
scale snapshot while retaining virial ratio
diag205
diagnosis: prepare 205 logfile to tabular data
radprof*
radial profile, fitting and plotting of snapshot
unbind
unbind stars from a system
snapstab
report on stability of a stellar system
snapfour
fourier analyze a snapshot
13. TABLE MANIPULATIONS
tabmath
general table mathematics - mini spreadsheet
tablsqfit
linear least squares fitting of tabular data
tabhist
histogram plotter
tablst
ascii output of binary table
tabsplit
split a table into two
snapprint
tabular output of a snapshot
tabpp
Poynter-Picket spectral line catalogue manipulator
--awk
UNIX program with a lot of similar capabilities
14. FITS
fitshead
dump the header of a fits file
scanfits
scan a fits file, optionally extract and convert
fitstab
convert fits table to ascii table
snapfits
convert a snapshot file to a fits file
ccdfits
write a fits file to disk
fitsccd
read a (fits) image file from disk
15. MODEL FITTING and ANALYSIS
tablsqfit
general linear least squares fitting of tabular data
tabhist
histogram plotter
snaprect
diaganolize moment-of-inertia of snapshot
rotcur
fit kinematic parameters from velocity field
ccdvel
create theoretical velocity field
rotcurves
rotation curve of a composite potentials
snapfit
fit a (6D) snapshot to a (3D) data cube

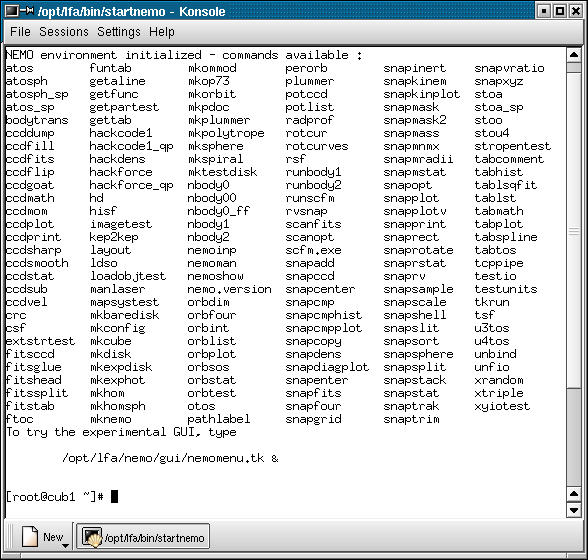

Screenshots
